Section 7D.2 - 2015 to 2016

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Saddle Tank following rust removal and

addition of red oxide primer paint at SVR

Bridgnorth on Sunday 11th January 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Inside frames ready to be primed after

removal of old paint at SVR Bridgnorth

on Sunday 11th January 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Inside frames following application of red

oxide primer paint at SVR Bridgnorth

on Sunday 11th January 2015.

(photo:   David Cooke)

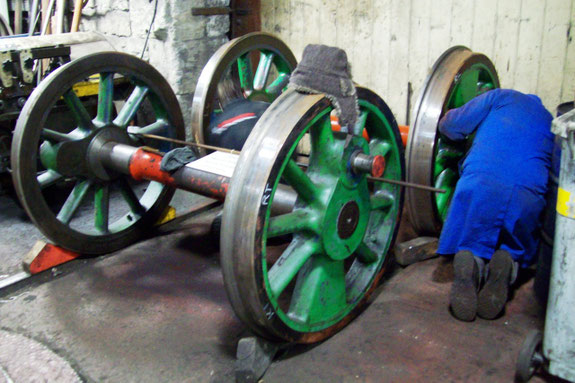

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Leading and trailing driving wheels be

cleaned ready for painting following tyre

turning on wheel lathe at SVR Bridgnorth

on Sunday 11th January 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

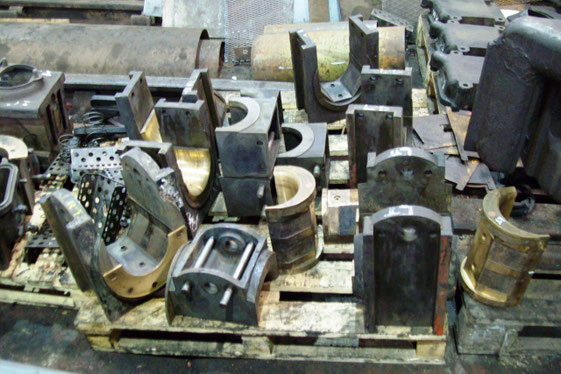

Axleboxes, bearings and keeps awaiting

refurbishment at SVR Bridgnorth

on Sunday 11th January 2015.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Leading and trailing driving wheels

followingthe first coat of red oxide primer

paint at SVR Bridgnorth on Sunday

25th January 2015.

(photo:   David Cooke)

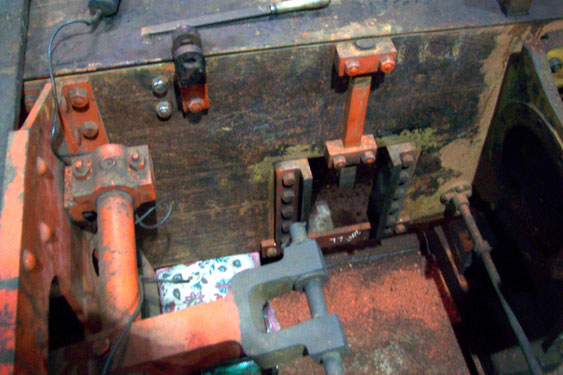

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

View of inside frames and motion bracket

with old paint being removed at SVR

Bridgnorth on Sunday 8th February 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire' Motion bracket and inside frame spacers

after first coat of red oxide primer paint

at SVR Bridgnorth on Sunday

11th February 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 ' Warwickshire'

Outer frame getting second coat of red

oxide primer paint at SVR Bridgnorth

on 26th April 2015.

(photo:   David Cooke)

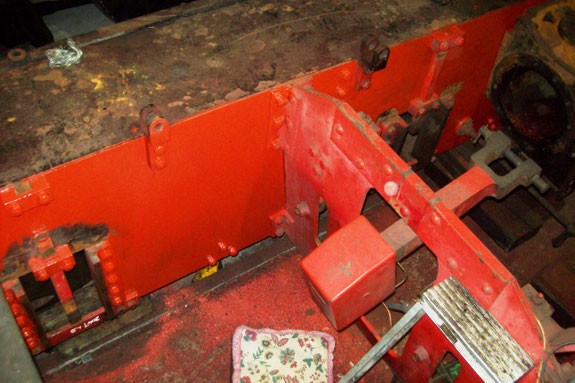

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Inner frames newly painted in red oxide

primer and motion bracket plus frame

spacers in red topcoat at SVR Bridgnorth

on Sunday 26th April 2015.

(photo:   David Cooke)

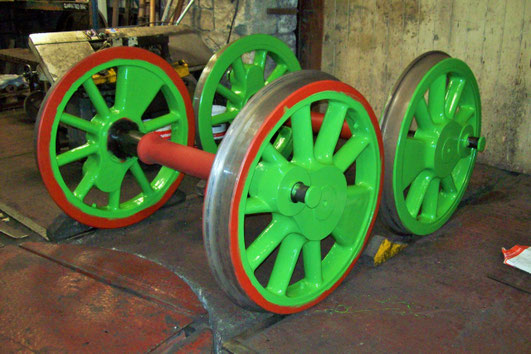

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Leading & trailing driving wheels in

experimental green livery at SVR

Bridgnorth on Sunday 26th April 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

LH cylinder block after having machined

faces cleaned up at SVR Bridgnorth

on Sunday 12th July 2015.

(photo:   David Cooke)

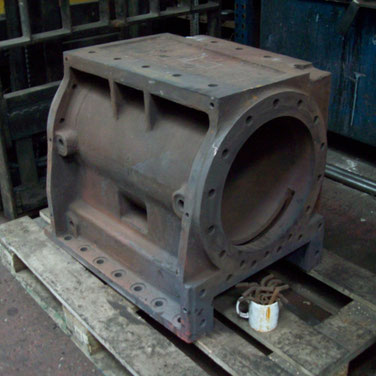

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

RH cylinder block at SVR Bridgnorth on Sunday

12th July 2015 after being returned from repair

to its exhaust passage. Unfortunately, although

this repair was a success,it has since been discovered

that a serious crack exists in the main cylinder bore

which cannot be rectified and this means the block will

need to be replaced with a new casting. A new CAD

drawing is being prepared so that the cost of a pattern

(probably polystyrene) and casting can be obtained.

(photo:   David Cooke)

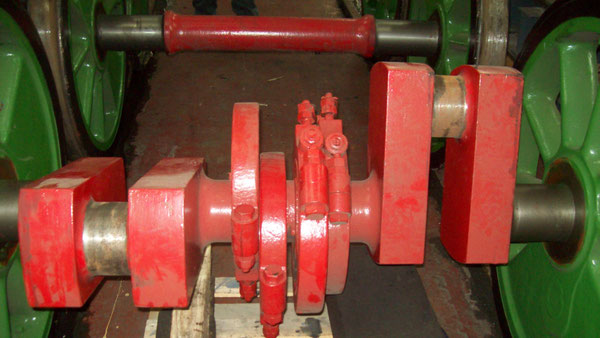

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Driving wheels in the process of being painted

at SVR Bridgnorth on Sunday 12 July 2015.

Centre driving wheels (with cranks and

eccentrics) are nearest the camera.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

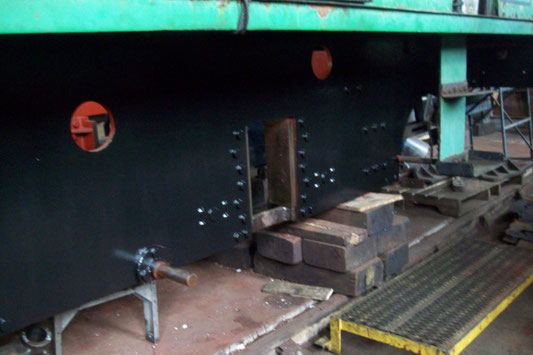

Outside frames now given a first coat of

black gloss paint at SVR Bridgnorth

on Sunday 12th July 2015.

(photo:   David Cooke)

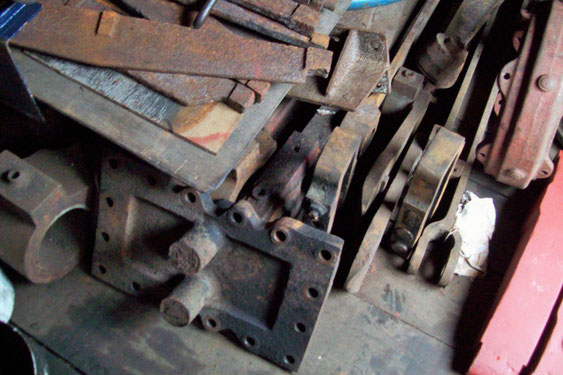

0-6-0ST MW No.2047 of 1926 'Warwickshire' Some parts removed from the locomotive

have already been moved down to SVR

Bewdley and placed in secure storage

after cleaning and painting seen

here on 26th July 2015.

(photo:   David Cooke)

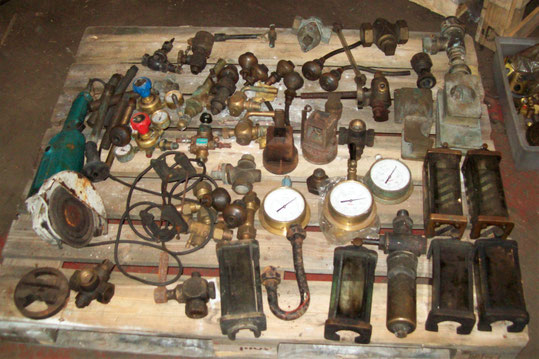

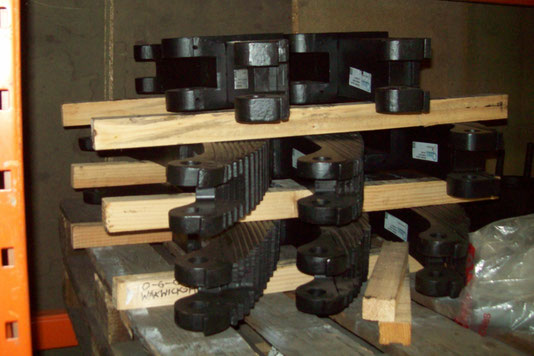

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Some parts removed from the locomotive

have been moved down to SVR Bewdley

and placed in secure storage seen

here on Sunday 26th July 2015.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Valve Reach Rods on shelf at SVR Bewdley

and awaiting refurbishment on Sunday

26th July 2015.

(photo:   David Cooke)

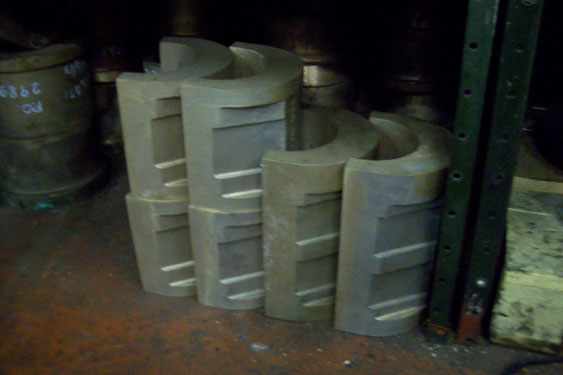

0-6-0ST MW No.2047 of 1926 'Warwickshire' New bearings for axleboxes which still

need to be machined to size prior to

fitting seen at SVR Bridgnorth

on Sunday 26th July 2015.

(photo:   David Cooke)

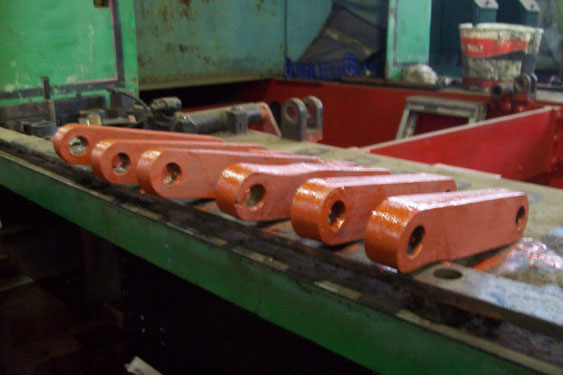

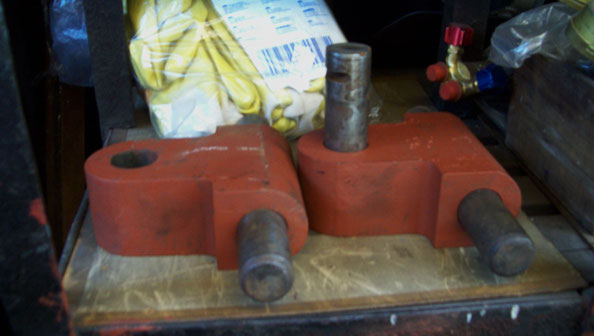

 0-6-0ST MW No.2047 of 1926 'Warwickshire' Spring hanger links after cleaning and

primed with red oxide paint at SVR

Bridgnorth on Sunday 26th July 2015.

A new set of springs is being

manufactured and new pins wil

l also be required as old pins are

well worn and cannot be reused.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Inside frames now in red topcoat at SVR Bridgnorth on Sunday 6th

September 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire' Axleboxes and new bearings in Machine

Shop at SVR Bridgnorth on Sunday

6th September 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

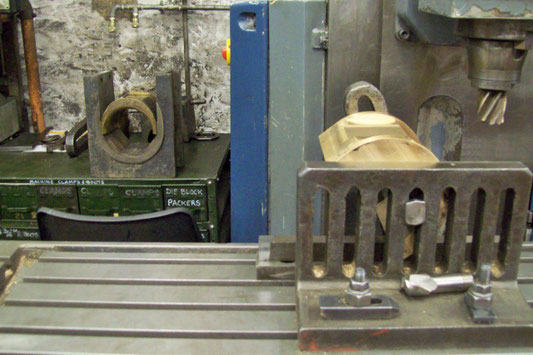

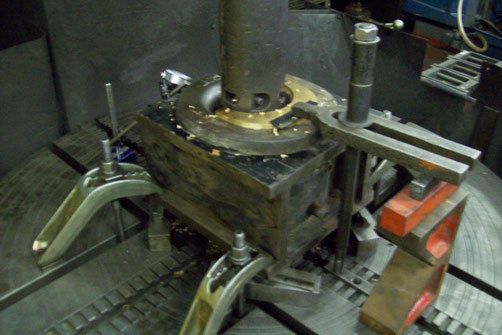

Bearing brass being milled to fit axlebox

(seen in background) at SVR Bridgnorth

on Sunday 6th  September 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Bearing being finished machined after

fitting in axlebox at SVR Bridgnorth

on Sunday 6th September 2015.

(photo:   David Cooke)

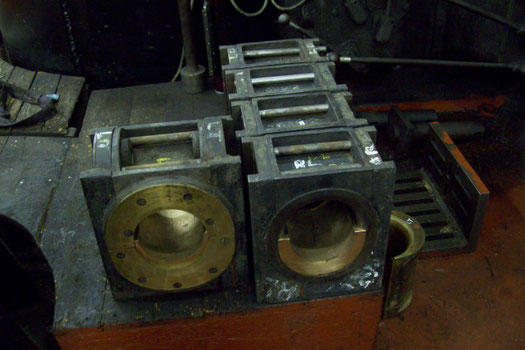

  0-6-0ST MW No.2047 of 1926 'Warwickshire'

Set of axleboxes with bearings fitted

awaiting final machining at SVR

Bridgnorth on Sunday 6th

September 2015.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Spring hanger links in red oxide primer

paint at SVR Bridgnorth on

Sunday 18th October 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Cylinder castings (LH casting on left - with

cleaned up machine faces and RH casting

on right - with repaired exhaust passage

repaired) at SVR Bridgnorth on Sunday 29th

November 2015. The castings had been removed

from secure storage to enable RH cylinder casting

to be accurately measured in order to make a 3D

CAD model leading to a new pattern and casting.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

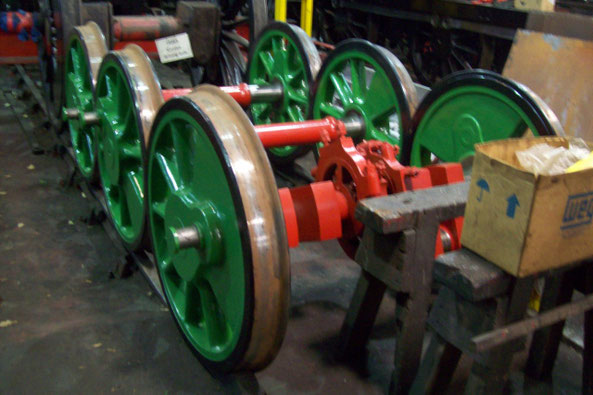

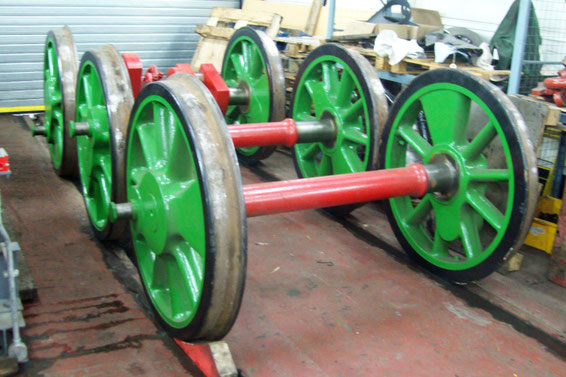

Driving wheel set after completion of

final painting - note revised green livery

(as close to original we could get) at SVR

Bridgnorth on Sunday 29th November 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

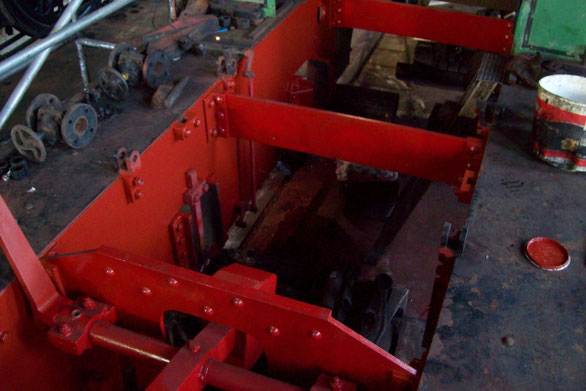

View of inside frames painted in red topcoat

plus re-furbished coupling rods lying on

running plate at SVR Bridgnorth on

Sunday 29th November 2015.

(photo:   David Cooke)

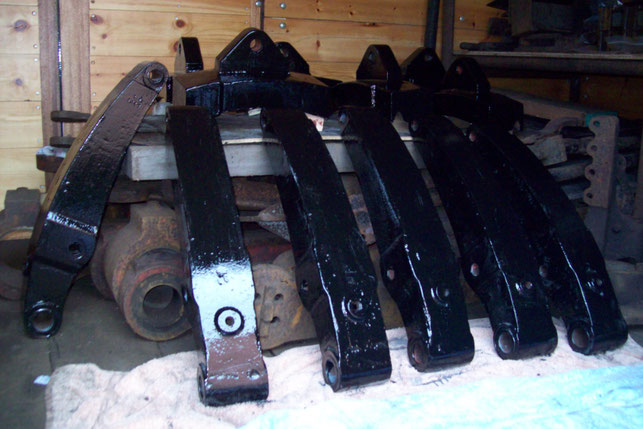

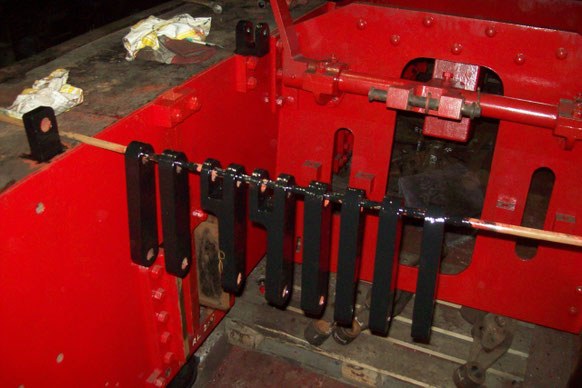

0-6-0ST MW No.2047 of 1926 'Warwickshire'

View of finish painted inside frames plus

spring hanger links in black topcoat at

SVR Bridgnorth on Sunday 29th

November 2015.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

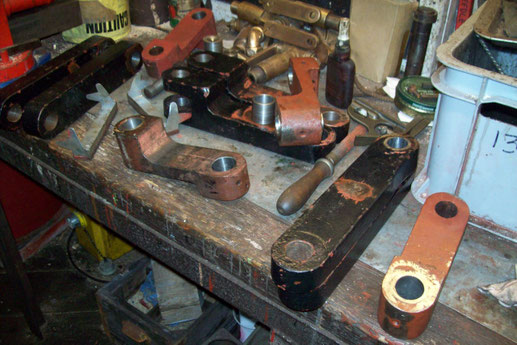

Spring Hanger Links and other Components

on the work bench inside the shared

workshop (with 15XX Pannier Tank Trust)

at SVR Bewdley on Sunday

14th February 2016.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Spring Hanger Links in the process of being

refurbished inside the shared workshop

(with 15XX Pannier Tank Trust) at SVR

Bewdley on Sunday 14th February 2016.

(photo:   David Cooke)

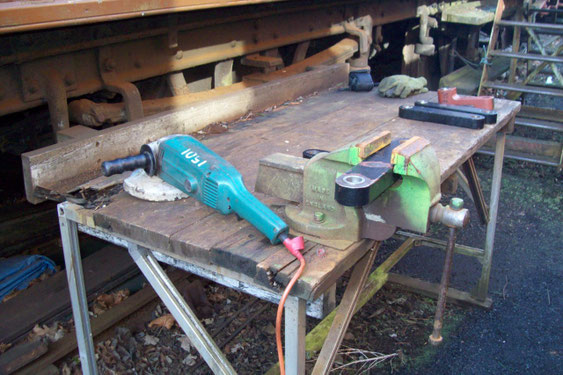

  0-6-0ST MW No.2047 of 1926 'Warwickshire'

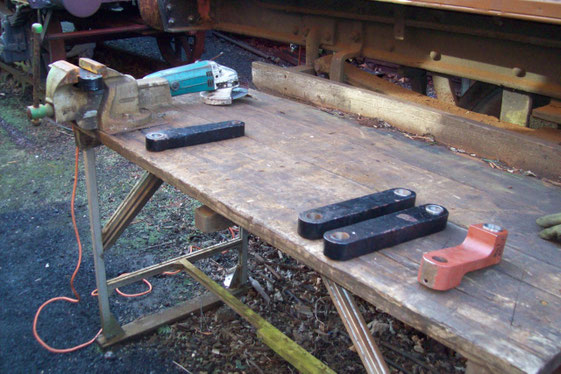

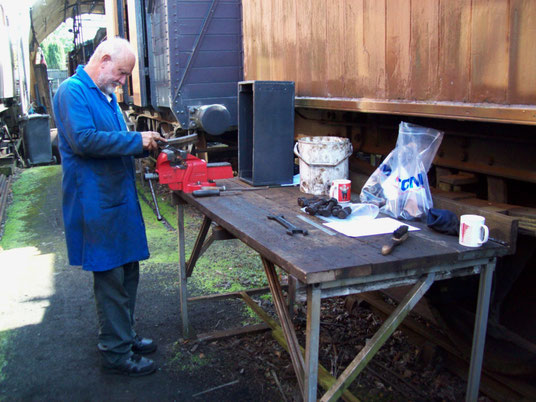

Spring Hanger Links being refurbished on

the work bench outside the shared workshop

(with 15XX Pannier Tank Trust) at SVR Bewdley

on Sunday 14th February 2016.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire' Spring Hanger Links being refurbished on

the work bench outside the shared workshop

(with 15XX Pannier Tank Trust) at SVR Bewdley

on Sunday 14th February 2016.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

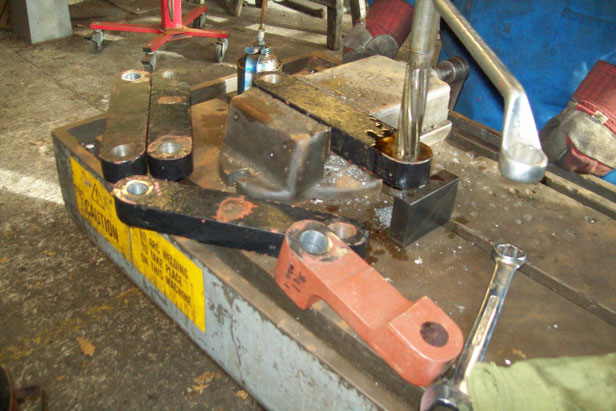

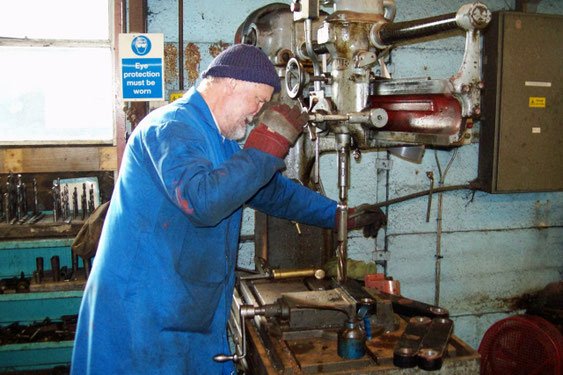

Spring Hanger Links being reamed out inside

the workshop at SVR Bewdley by Robin Jones

on Sunday 14th February 2016. Links had

previously been rebushed by Members of

15XX Pannier  Trust with whom we are

sharing facilities at Bewdley.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire' Spring Hanger Links in the process of being reamed out to size following the fitting of

new bushes in the workshop at SVR

Bewdley on Sunday 14th February 2016.

(photo:   David Cooke)

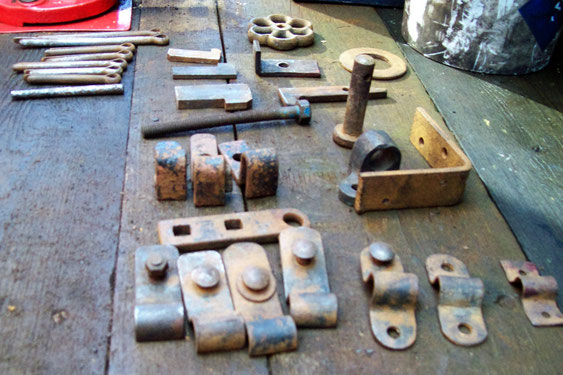

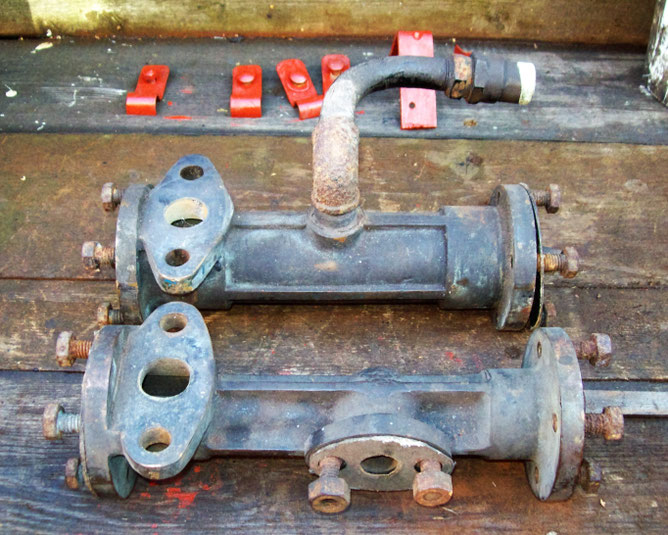

0-6-0ST MW No.2047 of 1926 'Warwickshire'

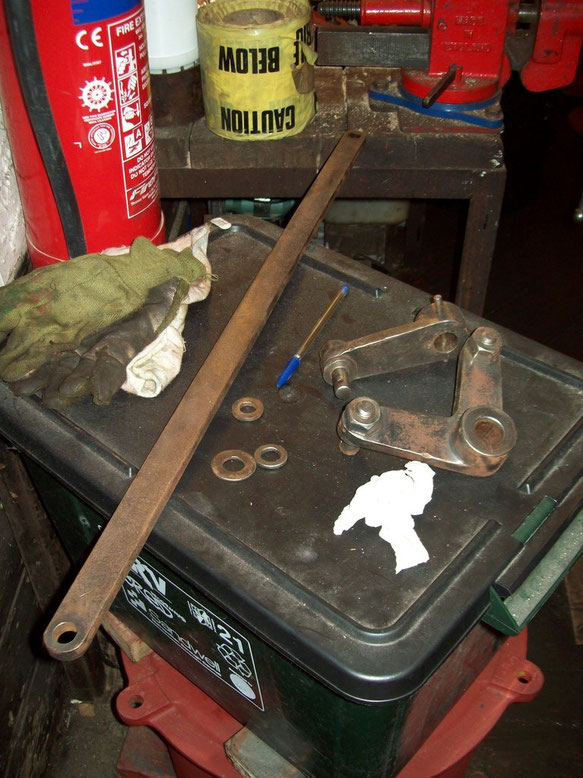

Cylinder Drain Cock Operating Gear

Components in the processof being

refurbished in theworkshop shared

with the 15XX Pannier TankTrust

at SVR Bewdley on Sunday

14th February 2016.

(photo:   David Cooke)

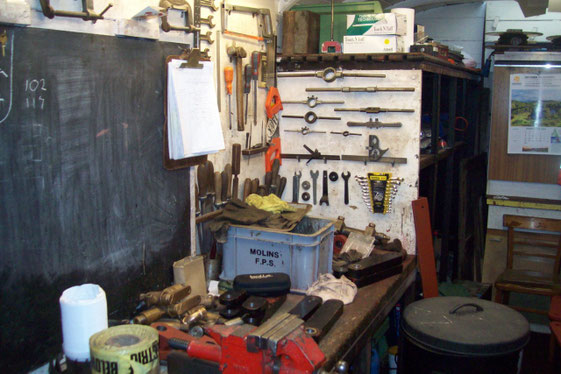

0-6-0ST MW No.2047 of 1926 'Warwickshire' Components and hand tools on the work

bench inside the workshop shared with

15XX Pannier Tank Trust at SVR Bewdley

on Sunday 14th February 2016.

(photo:   David Cooke)

  0-6-0ST MW No.2047 of 1926 'Warwickshire'

Spring Hanger Links in the process of being

refurbished on the workbench inside the

workshop at SVR Bewdley (shared with

15XX Pannier Tank Trust) on Sunday

14th February 2016.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Spring Links fitted with new bushes, with

bores reamed to suit new pins and cylinder

drain cock gear in grey primer at SVR

Bewdley on Sunday 24th April 2016.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

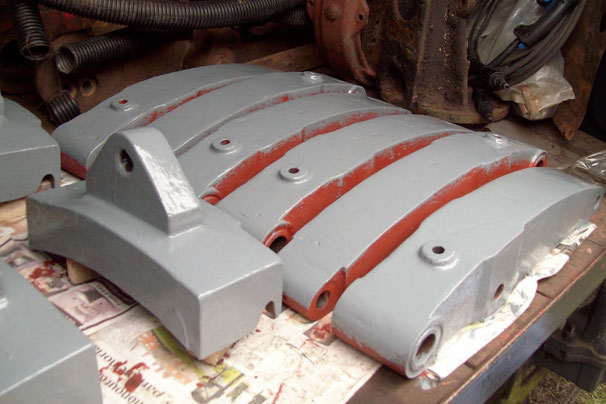

Spring Links in grey primer after being

re-bushed and bores reamed to suit new pins

at SVR Bewdley on Sunday 24th April 2016.

(photo:   David Cooke)

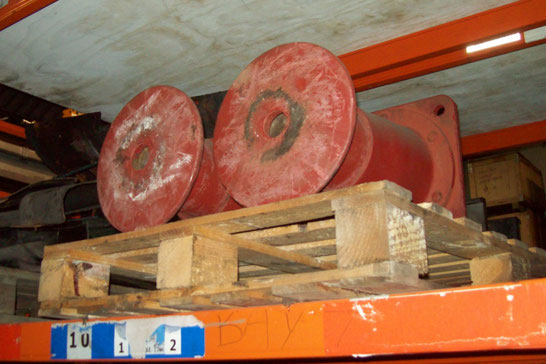

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

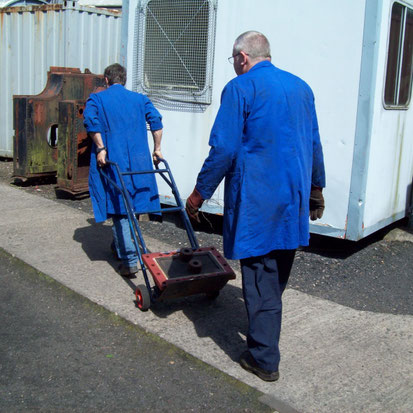

Buffers (refurbished and primer coated) being

moved from SVR Bewdley back to Bridgnorth

on Sunday 8th May 2016. These need to refitted

to front bufferbeam prior to move to Bewdley.

(photo:   David Cooke)

  0-6-0ST MW No.2047 of 1926 'Warwickshire'

Cylinder Valve Chest Cover being moved from

SVR Bewdley back Bridgnorth on Sunday

8th May 2016. This item and Front Covers

is to be dispatchedwith RH & LH Cylinder

Castings to Timsons of Kettering (where

New Cylinders are to be manufactured).

(photo:   David Cooke)

  0-6-0ST MW No.2047 of 1926'Warwickshire'

Cylinder Covers and Buffers loaded into Van

at SVR Bewdley prior to being moved back

to Bridgnorth on Sunday 8th May 2016.

(photo:   David Cooke)

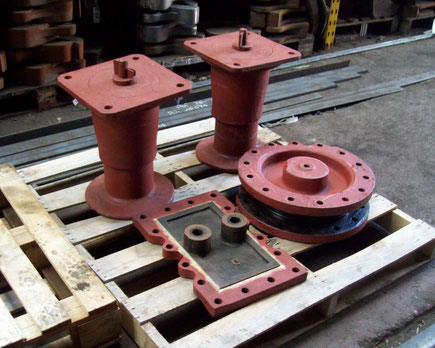

  0-6-0ST MW No.2047 of 1926 'Warwickshire'

Buffers and Cylinder Covers on a pallet at

SVR Bridgnorth on Sunday 8th May 2016. The

Buffers will be refitted to front bufferbeam

and the Cylinder Covers dispatched to

Timsons of Kettering (together with

RH & LH Cylinder Castings).

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

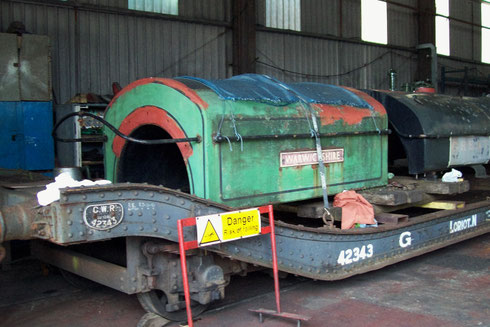

Saddletank moved from Headshunt into Workshop

at SVR Bridgnorth on 8th May 2016. This move

may allow us to start work on repair &

restoration of this item.

(photo:   David Cooke)

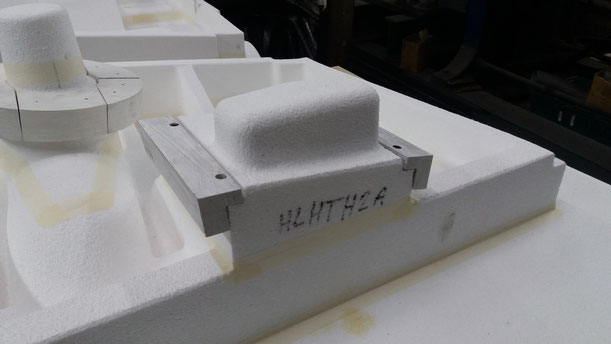

0-6-0ST MW No.2047 of 1926 'Warwickshire'

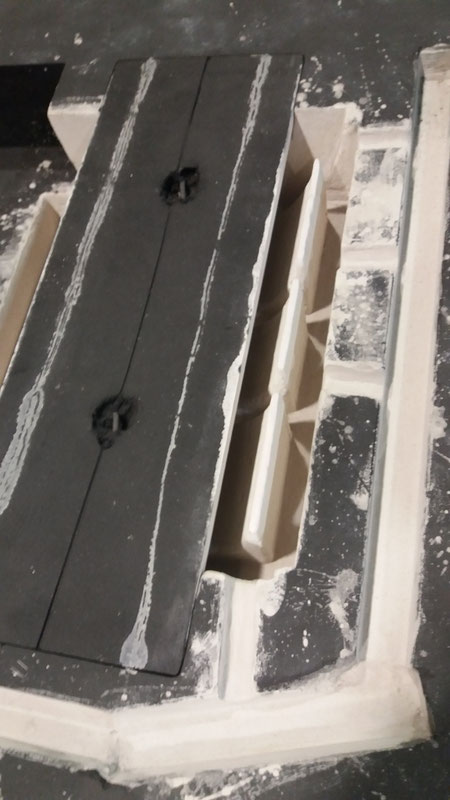

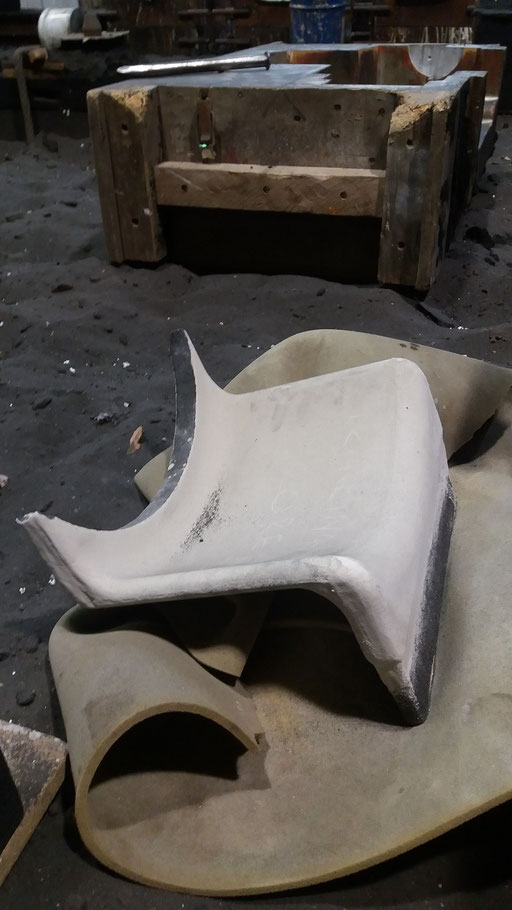

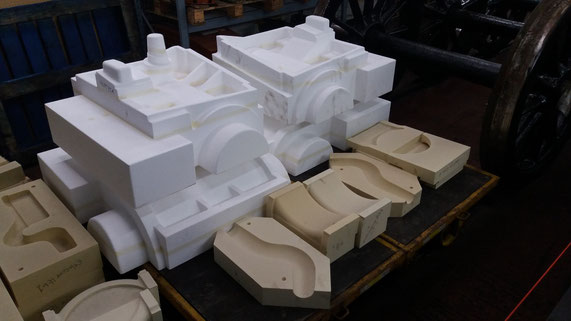

Pattern for Cylinder Steam Inlet Flange at

SVR Bewdley on Sunday 3rd July 2016.

Purchase Order for New Cylinder

Castings has now been placed

with Timsons of Kettering.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Big End Bearings after being cleaned

up at SVR Bewdley on 3rd July 2016.

(photo:   David Cooke)

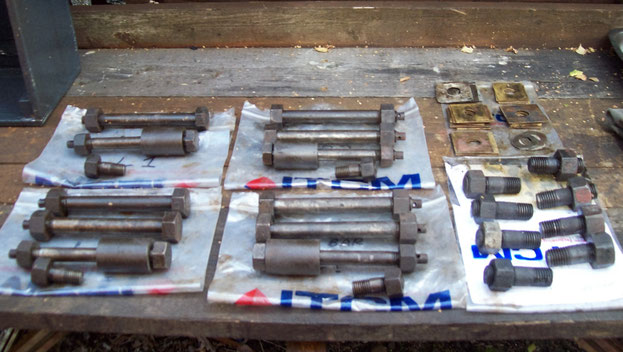

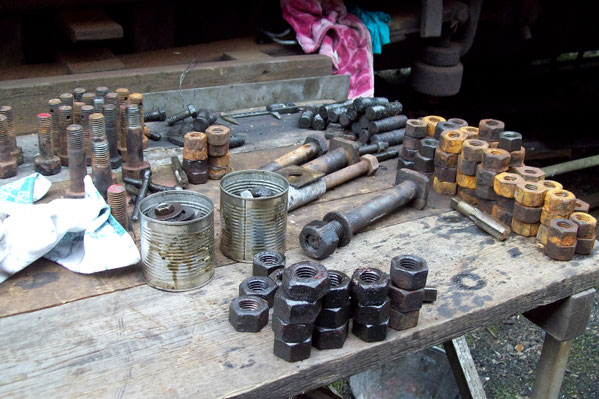

0-6-0ST MW No.2047 of 1926 'Warwickshire'

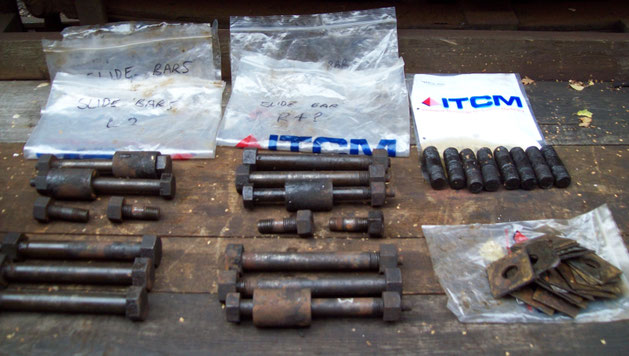

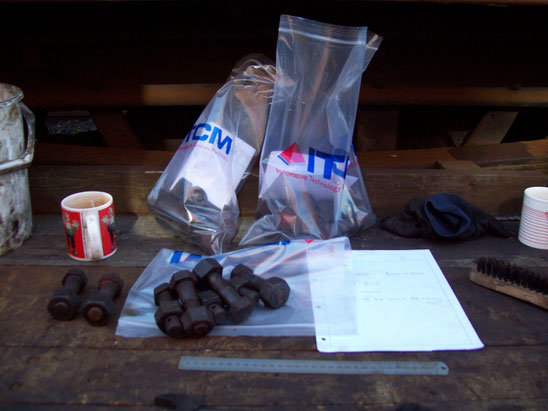

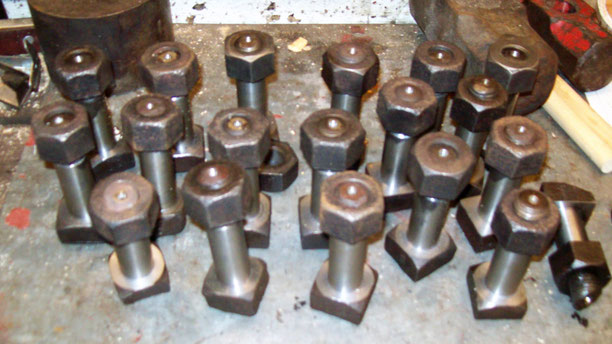

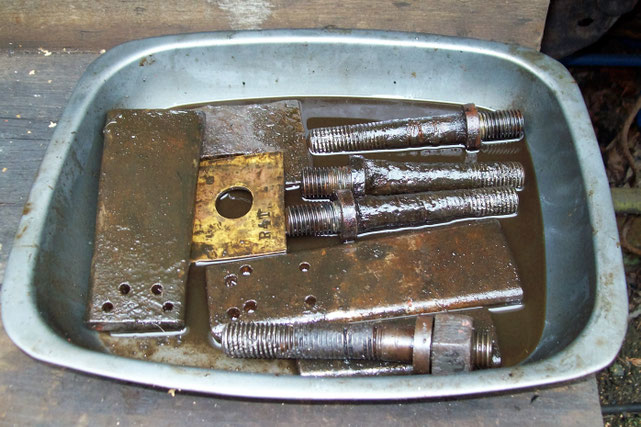

Collection of Studs, Nuts and Bolts prior to

being cleaned up and assessed for

possible further use at SVR Bewdley

on Sunday 3rd July 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

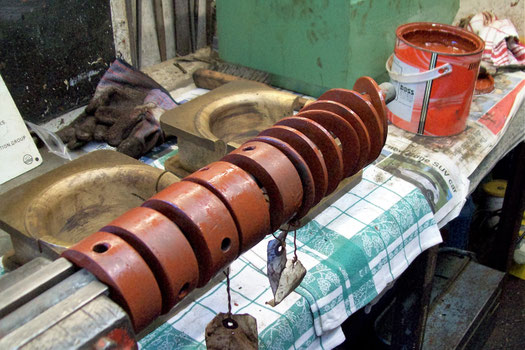

Collars and Spacers off Brake Gear Assembly

primed in red oxide at SVR Bewdley on

Sunday 3rd  July 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Newly painted Oil Pot Brackets hung up to

dry at SVR Bewdley on Sunday 3rd July 2016.

(photo:   David Cooke)

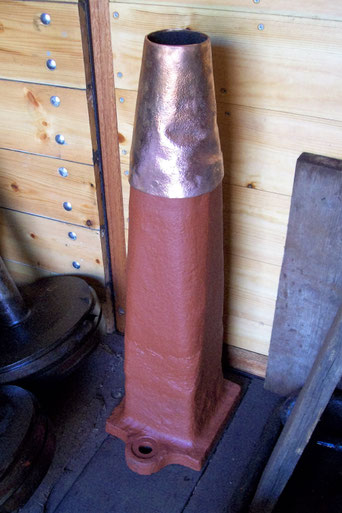

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Recently restored Blast Pipe with

burnished copper nozzle at SVR

Bewdley on Sunday 3rd July 2016.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Newly painted Brake Details (hangers and

blocks) at SVR Bewdley on

Sunday 3rd July 2016.

(photo:   David Cooke)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

Slidebar Oil Pots prior to cleaning at SVR

Bewdley on Sunday 31st July 2016.

(Photo:   David Cooke)

0-6-0ST MW No.2047 'Warwickshire'

Brake Blocks and Hangers in Grey

Primer at SVR Bewdley on Sunday

31st July 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 'Warwickshire'

Cylinder Slidebar Oil Pots after

cleaning at SVR Bewdley on

Sunday 31st July 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 'Warwickshire'

Big End Retaining Bolts after

cleaning at SVR Bewdley on

Sunday 31st July 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 'Warwickshire'

Brake Hangers in Grey Primer at

SVR Bewdley Sunday

14th August 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 'Warwickshire'

Brake Blocks in Black Topcoat at SVR Bewdley on Sunday 14th August 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 'Warwickshire'

Motion details awaiting cleaning at SVR Bewdley on Sunday 14th August 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Bolts, Nuts, Studs, Spacers and cotter Pins

following cleaning at SVR Bewdley on

Sunday 14th August 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Brake Hangers in Black Topcoat at SVR Bewdley on Sunday 14th August 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Slide Bar Retaining Bolts, Studs and

Spacers prior to cleaning at SVR

Bewdley on Sunday 21st August 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Slide Bar Retaining Bolts, Studs and Spacers

after cleaning at SVR Bewdley on Sunday 21st  August 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Brake Hangers and Blocks after a second coat of black gloss paint at SVR Bewdley

on Sunday 21st August 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Components on Shelves in Stores Van which

have been proped on Sunday 21st August prior to the 'Big Shunt' in September

2016 at SVR Bewdley.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Wooden Pattern Details for use with main

Polystyrene Patterns supplied by Baker

Patterns at SVR Bewdley on Sunday

18th  September 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Components cleaned and painted at SVR Bewdley on Sunday 18th September 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire

Rear Spring Hangers and Pins at SVR

Bewdley on Sunday 18th September 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Restoration of smaller components (i.e. nuts

& bolts) at SVR Bewdley on Sunday

18th September 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Small Components after cleaning ready to

be labelled and bagged at SVR Bewdley

on Sunday 18th September 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Patterns and Core Boxes for new Cylinders

at SVR Bridgnorth on Saturday 1st

October 2016.

(photo:   Carl Jones)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Patterns and Core Boxes for New Cylinders

at SVR Bridgnorth on Saturday 1st

October 2016.

(photo:   Carl Jones)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Patterns and core Boxes for New Cylinders

at SVR Bridgnorth on Saturday 1st

October 2016.

(photo: Carl Jones)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Loose Pieces for use with Patterns for New

Cylinders at SVR Bridgnorth on Saturday

1st  October 2016.

(photo:   Carl Jones)

0-6-0ST MW No.2047 of 1926'Warwickshire'

Assorted small components prior to

sorting, derusting and painting at SVR bewdley on Sunday 2nd October 2016.

(photo:    David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Assorted small components after sorting

and derusting but prior to painting at SVR

Bewdley on Sunday 2nd October 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

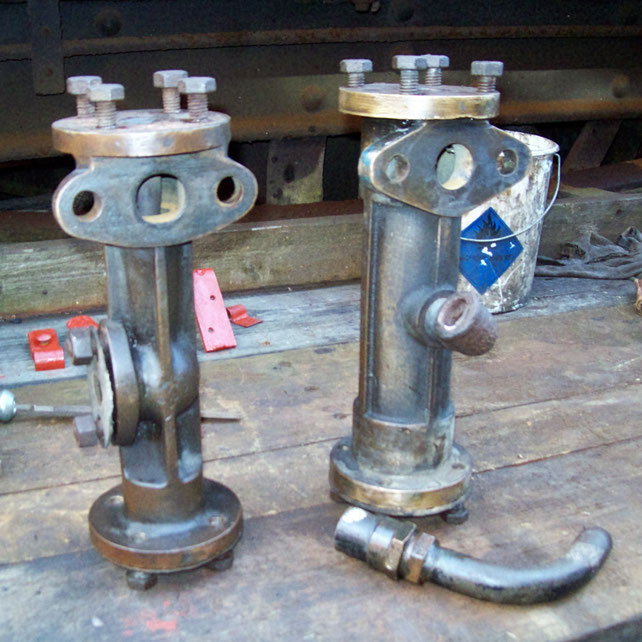

LH & RH Injectors prior to

cleaning at SVR Bewdley on

Sunday 2nd October 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047

of 1926 'Warwickshire'

LH & RH Injectors after

cleaning at SVR Bewdley on

Sunday 2nd October 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Assorted small components after cleaning, some painted with red

oxide at SVR Bewdley on Sunday

2nd October 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Assorted small components after

cleaning and painting with red oxide

at SVR Bewdley on Sunday 2nd

October 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Buffers in the Locomotive Stores at

SVR Bridgnorth on Sunday 20th

November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

New and Refurbished Springs in the

Locomotive Stores at SVR Bridgnorth

on Sunday 20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Small Components in the Locomotive Stores

at SVR Bridgnorth on Sunday

20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Original Tool Box (in need of some repair)

in the Locomotive Stores at SVR Bridgnorth

on Sunday 20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Tools and Small Components in the

Locomotive Stores at SVR Bridgnorth

boxed ready for transport to Bewdley

on Sunday 20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Reversing Reach Rod in the Locomotive

Stores at SVR Bridgnorth on Sunday

20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Driving Wheels stored in Paint Shop at SVR

Bridgnorth on Sunday 20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Driving Wheel Crank Axle showing rusty

journals in the Paint Shop at SVR

Bridgnorth on Sunday 20th

November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Driving Wheels with journals newly oiled

in the Paint Shop at SVR Bridgnorth on

Sunday 20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Small components after arrival at SVR

Bewdley prior to being placed in

safe storage on Sunday

20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

Refurbished set of cylinder bolts at SVR Bewdley on Sunday 20th November 2016.

(photo:   David Cooke)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

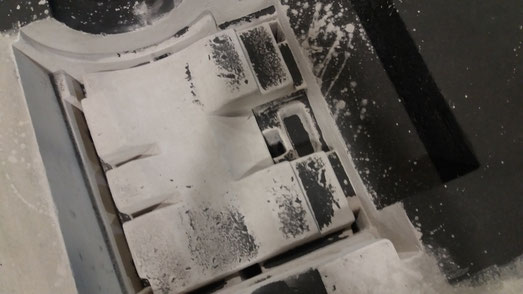

New Cylinder Castings Progress:-

Lower RH Mould with Lower

Bore Core Inserted at

Timsons, Kettering

on 16th December 2016.

(photo:   Carl Jones)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

New Cylinder Casting Progress:-

Right Hand Mould at Timsons,

Kettering on 16th December 2016.

(photo:   Carl Jones)

 0-6-0ST MW No.2047 of 1926 'Warwickshire'

New Cylinder Casting Progress:-

Steam Chest Core with Exhaust

Core Trial Inserted at Timsons,

Kettering on 16th December 2016.

(photo:   Carl Jones)

0-6-0ST MW No2047 of 1926 'Warwickshire'

New Cylinder Casting Progress:-

One of the Port Cores at Timsons,

Kettering on 16th December 2016.

(photo:   Carl Jones)

0-6-0ST MW No.2047 of 1926 'Warwickshire'

New Cylinder Casting Progress:-

Right Hand Mould at Timsons,

Kettering on 16th December 2016.

(photo:   Carl Jones)
